商品の詳細:
|
| Application: | liquid filtration | Diameter: | 2.5 inches |
|---|---|---|---|
| Efficiency: | 99% | Flow Rate: | 10 gallons per minute |
| Certifications: | NSF/ANSI 42 | Filter Material: | Fiberglass |
| Filtering Precision: | 5 μm | End Cap Type: | Flat |
| Operating Temperature: | 40-140°F | Condition: | New |
| Outer Diameter: | 69mm | Filtering Area: | 4.6m2 |
| Length: | 10 inches | Filtering Accuracy: | 5 μm |
| Package: | Custom Package |

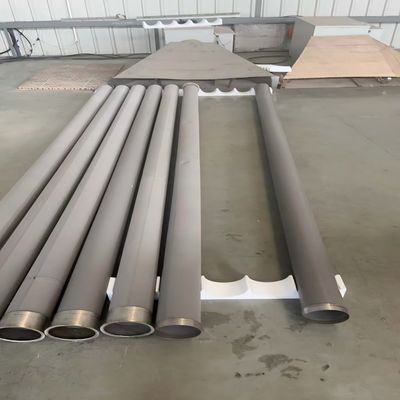

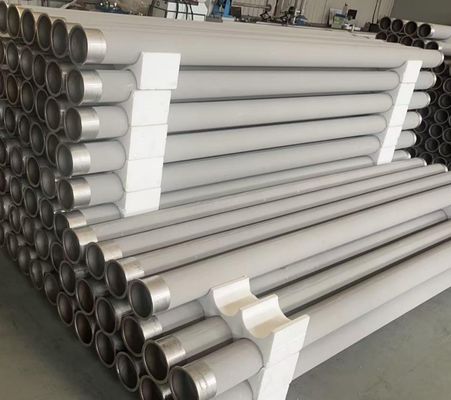

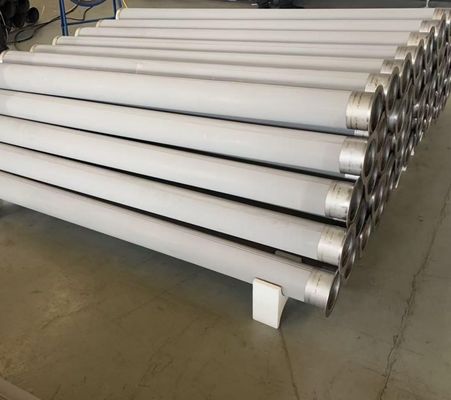

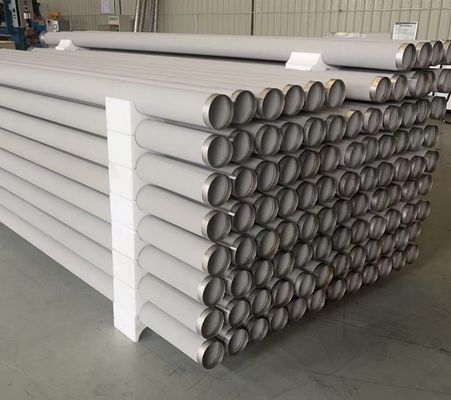

ZSWL Sintered Metal Fiber Felt Membrane Filter Cartridge for Precision Filtration
ZSWL porous metal membrane adopts continuous slurry impregnation + asymmetric alloy metal separation membrane preparation method, adopts macroporous support matrix composite micron-grade metal powder sintering separation layer, has a stepped pore structure, has high efficiency, low resistance, high precision performance advantages, is the most ideal and advanced filter material in the field of high temperature flue gas treatment.
The macroporous matrix of the ZSWL-porous metal membrane provides high permeation flux, the microfiltration separation layer provides high-precision separation, and the high-strength skeleton ensures that the high-frequency backwash metal membrane can achieve long-term operation to avoid bag breakage and corrosion. Achieve high-throughput, high-precision, and long-life stable operation.
Specifications:
| Parameter | Details |
|---|---|
| Product Name | ZSWL Porous Metal Membrane Filter Cartridge |
| Material | Stainless Steel 316L / 304, Hastelloy, Inconel (optional) |
| Filtration Accuracy | 0.5 – 100 μm |
| Porosity | 30% – 50% |
| Operating Temperature | Up to 600°C (Depending on material) |
| Max Operating Pressure | ≤ 30 MPa |
| Structure | Cylindrical / Pleated / Disc / Custom shapes |
| Outer Diameter | 30 – 100 mm (customizable) |
| Length | 100 – 1000 mm (customizable) |
| End Cap Type | DOE, 222/Fin, 226/Flat, Threaded, Custom |
| Cleaning Method | Backflushing, Ultrasonic, Chemical Cleaning |
| Application | Liquid & Gas Filtration, Petrochemical, Food & Pharma, High-Temp Systems |
ZSWL Porous Metal Membrane Filter Cartridge – Application Fields
Chemical and petrochemical filtration
Pharmaceutical and food-grade fluid purification
Gas and steam filtration in power and energy sectors
Wastewater treatment and environmental protection
High-temperature and high-pressure industrial filtration
Fuel, oil, and gas filtration in aerospace and automotive industries
Ultrapure liquid and gas filtration in electronics and semiconductors
Package & Delivery
Service Provide:
OEM service, printing or logo information is acceptable.
