商品の詳細:
|
| 保証: | 1年 | 動作温度: | 80 ℃ |
|---|---|---|---|
| フィルタリングエリア: | 23m2 | フランジ: | ステイナススチール |
| ろ過エリア: | 5"≥0.34m2 | サイズ: | 標準 |
| ろ過効率: | 高い | インストール方法: | 簡単 |
| 折りたたみの深さ: | 1インチ | 長さ: | 5 " |
| トップキャップ: | アルミニウム3ラグ | 折りたたみ数: | 4 |
| 衰弱: | (L) 222mm*(W) 213mm*(H) 255mm | 気流容量: | 高い |
| 外径: | 2.5インチ | ||
| ハイライト: | stainless steel coalescing filter element,gas liquid separation filter cartridge,dehydration removal air filter |
||

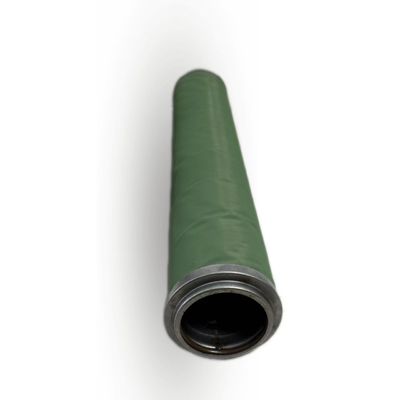

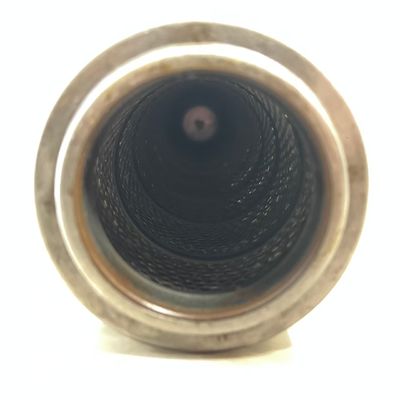

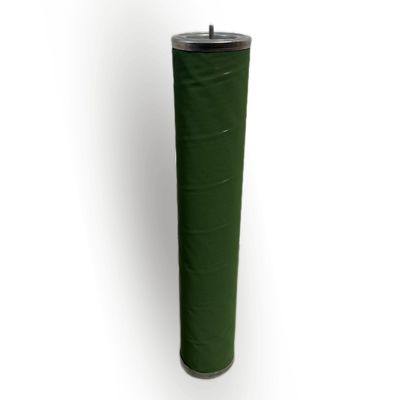

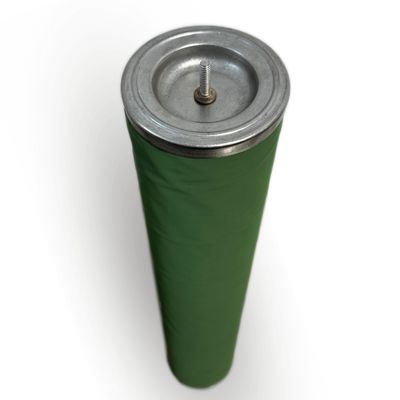

Stainless Steel Coalescing Filter Element for Gas/Liquid Separation, Dehydration and Removal
Product Description:
Our high-performance stainless steel coalescing filter element is designed for efficient gas/liquid separation, dehydration, andremoval of liquid aerosols and contaminants from compressed air and gas systems. The filter media features a multi-layer coalescing structure that captures and merges fine liquid droplets into larger ones, which are then drained away, ensuring clean,dry, and high-quality gas output.
|
Parameters |
Details |
|
Filter Element Size |
Outer Diameter: 150 |
|
Height |
600, 800, 900, 1000, 1150 |
|
Operating Temperature |
5°C - 80°C |
|
Skeleton |
Carbon Steel Perforated |
|
Filter Material |
Teflon |
|
Filter Material Form |
Pleated |
|
Performance Characteristics |
Strong Hydrophobicity, Strong Oil Permeability |
Key Features:
* Durable Construction: Made of stainless steel for excellent corrosion resistance and long service life, suitable for harsh
environments.
* Efficient Coalescence: Advanced coalescing technology effectively removes oil, water, and other liquid aerosols with high
separation efficiency.
* Wide Compatibility: Ideal for compressed air, natural gas, biogas, and other gas applications requiring dehydration and
purification.
* Low Pressure Drop: Optimized design minimizes energy consumption and maintains system efficiency.
* Easy Maintenance: Replaceable filter element simplifies upkeep and reduces operating costs.
Applications:
* Compressed air systems
* Natural gas dehydration and purification
* Biogas processing
* Industrial gas pipelines
* Pneumatic equipment protection
Specifications:
* Material: Stainless steel (housing and media support)
* Filtration Efficiency: Up to 99.9% for liquid aerosols (0.01 μm and larger)
* Operating Pressure: Up to 1.0 MPa (standard, customizable for higher pressures)
* Operating Temperature: -30°C to 80°C
* Available in various sizes and micron ratings for custom needs.
Enhance your gas system's reliability and performance with our robust coalescing filter elements. Contact us for customized
solutions!
